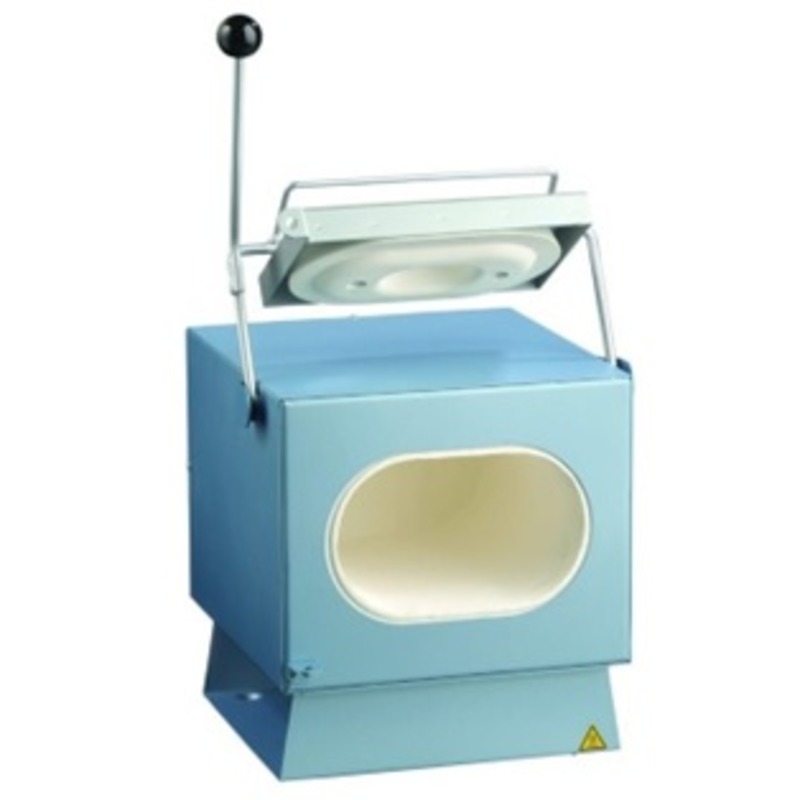

U24ST Muffle Kiln
Our flagship enamelling kiln model, the U24ST muffle kiln encompasses everything that is right about enamelling kilns. It is heated by a complete ceramic muffle interior intertwined evenly with a continuous element wire that is totally concealed and allows for even distribution of heat throughout the complete firing chamber. One may even lay this kiln on its side using the width as the height if inserting crucibles. With a top temperature of 1100 degrees Celsius there is no restriction on technique when using the U24ST. A solidly built kiln that may be positioned anywhere and simply requires a domestic power supply. The U24ST is pre drilled in the back wall for insertion of the ceramic pyrometer probe should accurate temperature measurement be required and being positioned in the back wall means that all the actual chamber size can be used for firing techniques. The up and over door will self support should both hands be used when inserting meshes and stilts. An ideal kiln for all professional and educational uses, the U24ST will serve for many, many years.
The U24ST enamelling kiln (ST for 'step switch') is equipped with a simmerstat which regulates the electricity input thereby maintaining a constant temperature. A red light indicates when power is entering the kiln and the calibration form 1-10 allows a range of temperature control to apply. If left on setting 10, power enters uninterrupted and may be used when continuous firings are taking place or techniques which involve the frequent opening of the kiln door.
The ST controller is ideal for those working for long periods or for teaching in schools. The controller removes any risk of either over firing the enamels or damaging the kiln through the firing chamber becoming too hot.
A full range of spare parts are available separately and may easily be fitted by anyone with the very basic knowledge of electrical application.
Prod. code Cat. code Description Ex. VAT In. VAT QTY.
351-2400 U24ST U24ST Muffle Kiln with Regulator
Pack Size
Heated from four sides.
Watt: 1200
Max Temp: 11000c
Voltage: 230v
Reaches 8000 in 45 minutes.
Firing chamber: 2.5l
Firing chamber size: H95xW155xD170mm
Overall size: H310xW425xD375mm
Weight: 19.5kg
All Kilns are CE approved.
