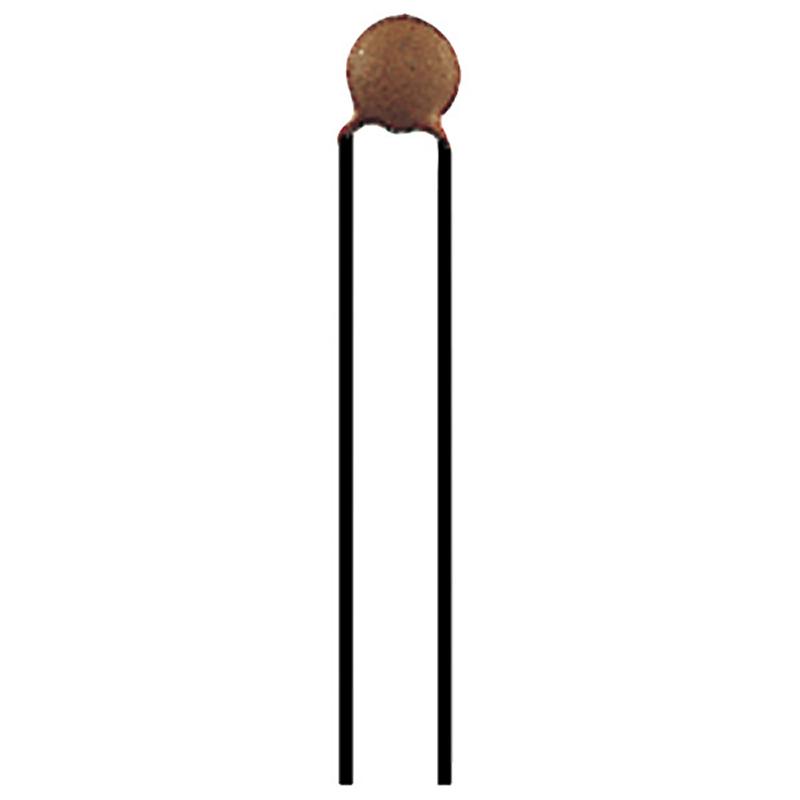

Picture of Ceramic Disc Capacitors
Picture of Ceramic Disc Capacitors
Ceramic Disc Capacitors
General purpose disc capacitors manufactured from high dielectric constant ceramics.
Durez coated and high temperature wax impregnated.
Supplied in packs of 100.
Products in this range
Prod. code Cat. code Description Ex. VAT In. VAT QTY.
905-1001 CC08-0140 Ceramic Disc Capacitors Value 100pF
Pack Size
905-1002 CC08-0145 Ceramic Disc Capacitors Value 120pF
Pack Size
905-1003 CC08-0150 Ceramic Disc Capacitors Value 150pF
Pack Size
905-1004 CC08-0155 Ceramic Disc Capacitors Value 180pF
Pack Size
905-1005 CC08-0160 Ceramic Disc Capacitors Value 220pF
Pack Size
905-1006 CC08-0165 Ceramic Disc Capacitors Value 270pF
Pack Size
905-1007 CC08-0170 Ceramic Disc Capacitors Value 330pF
Pack Size
905-1008 CC08-0175 Ceramic Disc Capacitors Value 390pF
Pack Size
905-1009 CC08-0180 Ceramic Disc Capacitors Value 470pF
Pack Size
905-1010 CC08-0185 Ceramic Disc Capacitors Value 560pF
Pack Size
905-1011 CC08-0190 Ceramic Disc Capacitors Value 680pF
Pack Size
905-1012 CC08-0195 Ceramic Disc Capacitors Value 820pF
Pack Size
905-1013 CC08-0200 Ceramic Disc Capacitors Value 1n
Pack Size
905-1014 CC08-0205 Ceramic Disc Capacitors Value 1n5
Pack Size
905-1015 CC08-0210 Ceramic Disc Capacitors Value 2n2
Pack Size
905-1016 CC08-0215 Ceramic Disc Capacitors Value 3n3
Pack Size
905-1017 CC08-0220 Ceramic Disc Capacitors Value 4n7
Pack Size
905-1018 CC08-0225 Ceramic Disc Capacitors Value 6n8
Pack Size
905-1019 CC08-0230 Ceramic Disc Capacitors Value 10n
Pack Size
905-1020 CC08-0235 Ceramic Disc Capacitors Value 100n
Pack Size
Technical Specification
Tolerance: +/-10% below 4n7
-20 to +80% for 4n7 & above
Working Voltage: 50V DC (100n 25V DC)
Temperature Range: -25 to +80oC

Code Value Pitch
CC08-0140 100pF 2.5
CC08-0145 120pF 2.5
CC08-0150 150pF 2.5
CC08-0155 180pF 2.5
CC08-0160 220pF 2.5
CC08-0165 270pF 2.5
CC08-0170 330pF 2.5
CC08-0175 390pF 2.5
CC08-0180 470pF 2.5
CC08-0185 560pF 2.5
CC08-0190 680pF 2.5
CC08-0195 820pF 2.5
CC08-0200 1n 2.5
CC08-0205 1n5 2.5
CC08-0210 2n2 5
CC08-0215 3n3 5
CC08-0220 4n7 5
CC08-0225 6n8 5
CC08-0230 10n 5
CC08-0235 100n 5
